26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube 26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

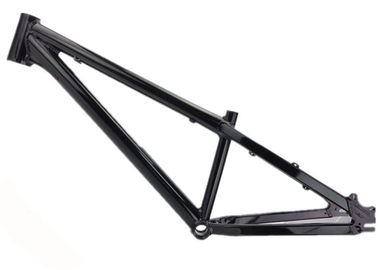

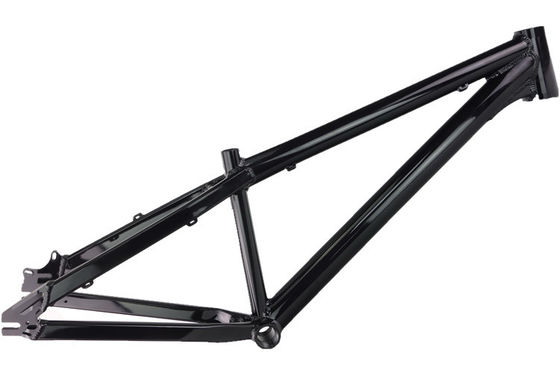

Gambar besar :  26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

Detail produk:

Place of Origin: China
Nama merek: OEM
Model Number: DJ-LQ2601

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 100 PCS
Harga: Negotiable
Packaging Details: 2 PCS / Carton
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 2000 PCS per Month
Detil Deskripsi produk
Material: 6061 Aluminum Alloy Wheel Size: 26 Inch
Headtube: 1-1/8" to 1-1/2" Bottom Bracket: Euro Type BB
Cahaya Tinggi:

xc bike frame

,

trail bike frame

6061 Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube



Features

Lightweight, strong and responsive, the DJ frame has all the features you would expect, it's designed to work best with forks from 100-140mm of travel and features a semi-integrated tapered head tube which can accept forks with both standard 1-1/8" or tapered 1.5" to 11-1/8" steerer tubes.



Specifications

Material: AL6061-T6

Rommended fork travel: 80-140mm

Head tube: semi-integrated tapered IS44/IS56, head tube length 115mm

Fits forks: fits forks with standard 1-1/8" or tapered 1.5" to 1-1/8" steerer tubes

BB: threaded 68mm

Biggest chainring: up to 32T

Rear hub: 135x10mm, horizontal dropouts, suggested bolt-on hubs

Disc brake: IS disc brake mount, max rotor size up to 180mm

Seat post/clamp: 27.2mm / 31.8mm

Max tire: 26" x 2.35"



26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube 0

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube 1

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube 2

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube 3
